Series: EJ5B, EJ6B - 90° High-Density Face Mill
Product Series Features:
- Ø1.500-3.000"
- 8 mm insert with 4 indexes
- .317" Max. Depth of Cut
- Insert corners: .015", .031", .062" R
EDP |
Part Number |
DC Cutting Dia. |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Bore Dia. |
KWW Keyway |
RMPX Ramp Angle Max. |
|
|---|---|---|---|---|---|---|---|---|
| 2933615 | EJ5B-02R03 | 2.500 | 1.570 | 9 | 0.7500 | 0.312 | 0.5 |
Notes:
- Insert screw tightening torque: 14-18 in*lb.

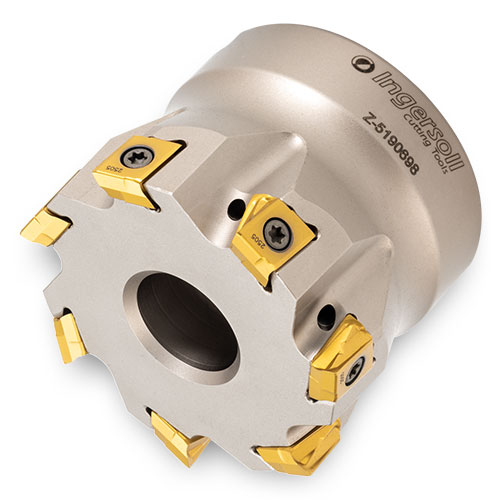

- *Images are a representation of the product series as a whole and therefore may not be the exact item
EDP |
Part Number |
DC Cutting Dia. |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Bore Dia. |
KWW Keyway |
RMPX Ramp Angle Max. |
|
|---|---|---|---|---|---|---|---|---|
| 2933620 | EJ5B-01R01 | 1.500 | 1.570 | 6 | 0.5000 | 0.250 | 0.8 | |
| 2933619 | EJ6B-01R01 | 1.500 | 1.570 | 5 | 0.5000 | 0.250 | 0.8 | |
| 2933618 | EJ5B-02R01 | 2.000 | 1.570 | 10 | 0.7500 | 0.312 | 0.6 | |
| 2933617 | EJ5B-02R02 | 2.000 | 1.570 | 7 | 0.7500 | 0.312 | 0.6 | |
| 2933616 | EJ6B-02R01 | 2.000 | 1.570 | 5 | 0.7500 | 0.312 | 0.6 | |
| 2933615 | EJ5B-02R03 | 2.500 | 1.570 | 9 | 0.7500 | 0.312 | 0.5 | |
| 2933614 | EJ6B-02R02 | 2.500 | 1.570 | 6 | 0.7500 | 0.312 | 0.5 | |
| 2933613 | EJ5B-03R01 | 3.000 | 1.750 | 14 | 1.0000 | 0.375 | 0.4 | |
| 2933612 | EJ5B-03R02 | 3.000 | 1.570 | 10 | 1.0000 | 0.375 | 0.4 | |
| 2933611 | EJ6B-03R01 | 3.000 | 1.750 | 7 | 1.0000 | 0.375 | 0.4 |
