Series: QWIK CHANGE COUPLING SYSTEM

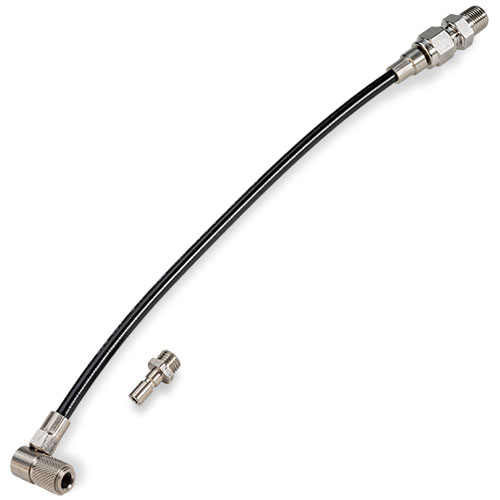

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Coupling System for use with CoolBurst holders
- Hose Set, Hose, and Connector are sold separately
EDP |
Part Number |
ISO Number |
Component |
OAL Overall Length |
CNT Coolant Entry Thread Size |
CXT Coolant Exit Thread Size |
CP Coolant Pressure |
|
|---|---|---|---|---|---|---|---|---|
| 6182855 | S-TB-HOSE-R1/8-COUPLE-200 | S-TB-HOSE-R1/8-COUPLE-200 | Hose Set | 200.00 mm | PT1/8-28 | 5/16-24 UNF - Qwik Change | 2900 |
EDP |
Part Number |
ISO Number |
Component |
OAL Overall Length |
CNT Coolant Entry Thread Size |
CXT Coolant Exit Thread Size |
CP Coolant Pressure |
|
|---|---|---|---|---|---|---|---|---|
| 6199401 | S-TB-HOSE-R1/8-COUPLE-100 | S-TB-HOSE-R1/8-COUPLE-100 | Hose Set | 100.00 mm | PT1/8-28 | 5/16-24 UNF - Qwik Change | 2900 | |
| 6182855 | S-TB-HOSE-R1/8-COUPLE-200 | S-TB-HOSE-R1/8-COUPLE-200 | Hose Set | 200.00 mm | PT1/8-28 | 5/16-24 UNF - Qwik Change | 2900 | |
| 6179520 | S-TB-HOSE-R1/8-COUPLE-300 | S-TB-HOSE-R1/8-COUPLE-300 | Hose Set | 300.00 mm | PT1/8-28 | 5/16-24 UNF - Qwik Change | 2900 | |
| 6179521 | TB-CONNECTOR-5/16-COUPLE | TB-CONNECTOR-5/16-COUPLE | Connector | - | - | 5/16-24 UNF - Qwik Change | 2900 | |
| 6199402 | TB-CONNECTOR-G1/8-COUPLE | TB-CONNECTOR-G1/8-COUPLE | Connector | - | - | G1/8-28 BSPP | 2900 | |
| 6338660 | TB-HOSE-R1/8-COUPLE-100 | TB-HOSE-R1/8-COUPLE-100 | Hose | 100.00 mm | PT1/8-28 | - | 2900 | |
| 6182860 | TB-HOSE-R1/8-COUPLE-200 | TB-HOSE-R1/8-COUPLE-200 | Hose | 200.00 mm | PT1/8-28 | - | 2900 | |
| 6182859 | TB-HOSE-R1/8-COUPLE-300 | TB-HOSE-R1/8-COUPLE-300 | Hose | 300.00 mm | PT1/8-28 | - | 2900 |
