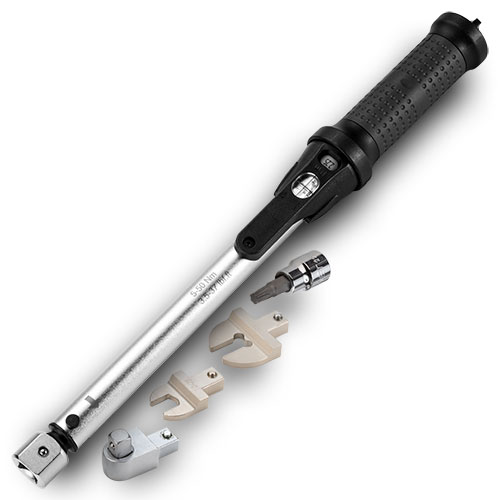

Series: Torque Wrench (Adjustable) CHIP SURFER
Product Series Features:
- Adjustable Torque Handle, Wrench Heads, and Drivers for secure & accurate tightening of Chip Surfer Tips
- Components are sold individually, and are not available as an assembly or a set
EDP |
Part Number |
ISO Number |
Description |
Additional Info |
|
|---|---|---|---|---|---|
| 1200284 | DS-T2038SKT | BIT SOCKET T20 3/8" DRIVE | T20 Torx Bit Socket, 3/8" Square Drive | ||
| 1204169 | DS-T2538SKT | BIT SOCKET T25 3/8" DRIVE | T25 Torx Bit Socket, 3/8" Square Drive | ||
| 7007520 | DS-T3038SKT | BIT SOCKET T30 3/8" DRIVE | T30 Torx Bit Socket, 3/8" Square Drive | ||
| 1204172 | DS-T4038SKT | BIT SOCKET T40 3/8" DRIVE | T40 Torx Bit Socket, 3/8" Square Drive | ||
| 1204968 | DS-T5038SKT | BIT SOCKET T50 3/8" DRIVE | T50 Torx Bit Socket, 3/8" Square Drive | ||
| 7007523 | WRENCHCS10-08 | CS WRENCH 10-08 15NM | Wrench Head for T08 Chip Surfer 10 mm opening; For use with Adjustable Torque Wrench handle set to 15 N·m / 10.8 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007524 | WRENCHCS13-10 | CS WRENCH 13-10 28NM | Wrench Head for T10 Chip Surfer 13 mm opening; For use with Adjustable Torque Wrench handle set to 28 N·m / 20.8 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007525 | WRENCHCS16-12 | CS WRENCH 16-12 28NM | Wrench Head for T12 Chip Surfer 16 mm opening; For use with Adjustable Torque Wrench handle set to 28 N·m / 20.8 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007526 | WRENCHCS20-15 | CS WRENCH 20-15 40NM | Wrench Head for T15 Chip Surfer 20 mm opening; For use with Adjustable Torque Wrench handle set to 40 N·m / 29.1 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007527 | WRENCHCS4E-05 | CS WRENCH 4E-05 7NM | Wrench Head for T05 Chip Surfer 4 mm opening; For use with Adjustable Torque Wrench handle set to 7 N·m / 5 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007528 | WRENCHCS5E-06 | CS WRENCH 5E-06 10NM | Wrench Head for T06 Chip Surfer 5 mm opening; For use with Adjustable Torque Wrench handle set to 10 N·m / 7.5 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007521 | WRENCHCS6-05 | CS WRENCH 6-05 7NM | Wrench Head for T05 Chip Surfer 6 mm opening; For use with Adjustable Torque Wrench handle set to 7 N·m / 5 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007529 | WRENCHCS7E-08 | CS WRENCH 7E-08 15NM | Wrench Head for T08 Chip Surfer 7 mm opening; For use with Adjustable Torque Wrench handle set to 15 N·m / 10.8 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007522 | WRENCHCS8-06 | CS WRENCH 8-06 10NM | Wrench Head for T06 Chip Surfer 8 mm opening; For use with Adjustable Torque Wrench handle set to 10 N·m / 7.5 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007530 | WRENCHCS8E-10 | CS WRENCH 8E-10 28NM | Wrench Head for T10 Chip Surfer 8 mm opening; For use with Adjustable Torque Wrench handle set to 28 N·m / 20.8 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 7007531 | WRENCHCS9E-12 | CS WRENCH 9E-12 28NM | Wrench Head for T12 Chip Surfer 9 mm opening; For use with Adjustable Torque Wrench handle set to 28 N·m / 20.8 ft lb | Head Only; Adjustable Torque Wrench Handle sold separately | |
| 1204734 | DS-38SKT9X12 | INSERT TOOL 3/8" 9X12MM | 90° Socket Adapter for Torx Drive Heads, 3/8" Square Drive, 9 x 12mm Connection | Optional Accessory Item; Sold Separately | |
| 3340289 | WRENCHTORQUE5-50Nm9X12 | TORQUE WRENCH 5-50NM 9X12 | Adjustable Torque Handle (5-50 Nm) for use with Chip Surfer Open End Wrench Heads & Torx Drive Heads, 9 x 12 mm Drive Adaption |
Notes:
- When assembling, be sure tip seats on shank with no gap.
- Tightening Torque:
- T05= 5 ft-lb / 7 N*m
- T06= 7.5 ft-lb / 10 N*m
- T08= 10.8 ft-lb / 15 N*m
- T10= 20.8 ft-lb / 28 N*m
- T12= 20.8 ft-lb / 28 N*m
- T15= 29.1 ft-lb / 40 N*m
- T21= 80.8 ft-lb / 110 N*m
