Home > T-ClampMini > Series #: TTSIR/L - Internal Holder

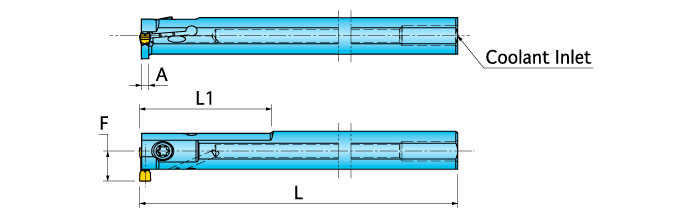

Series: TTSIR/L - Internal Holder

Coolant-Thru

ID Groove & Turn

ID Groove

Product Series Features:

For Grooving & Turning
.375-.750" Shank

Coolant-Thru

ID Groove & Turn

ID Groove

Matching Items
All Series Items

Choose a Section

	EDP	Part Number	SSC Insert Seat Size	DCON Shank Dia.	DMIN Min. Bore Dia.	WF Functional Width	LDRED Reduced Body Dia. Length	CDX Cutting Depth Max.	OAL Overall Length	WB Body Width	HF Functional Height	HAND Hand
	6149669	TTSIR15.9-16-3	3	0.625	0.630	0.433	1.58	0.118	6.00	0.08	0.29	Right

	EDP	Part Number	SSC Insert Seat Size	DCON Shank Dia.	DMIN Min. Bore Dia.	WF Functional Width	LDRED Reduced Body Dia. Length	CDX Cutting Depth Max.	OAL Overall Length	WB Body Width	HF Functional Height	HAND Hand
	6163882	TTSIL12.7-14-2	2	0.500	0.551	0.358	1.38	0.102	5.00	0.06	0.23	Left
	6163891	TTSIL12.7-14-3	3	0.500	0.551	0.358	1.38	0.102	5.00	0.08	0.23	Left
	6163884	TTSIL15.9-12.5-2	2	0.625	0.492	0.433	0.79	0.094	6.00	0.06	0.29	Left
	6163886	TTSIL15.9-14-2	2	0.625	0.551	0.433	0.98	0.102	6.00	0.06	0.29	Left
	6163894	TTSIL15.9-14-3	3	0.625	0.551	0.433	0.98	0.102	6.00	0.08	0.29	Left
	2802006	TTSIL15.9-16-2	2	0.625	0.630	0.433	1.58	0.118	6.00	0.06	0.29	Left
	6149670	TTSIL15.9-16-3	3	0.625	0.630	0.433	1.58	0.118	6.00	0.08	0.29	Left
	6163880	TTSIL9.5-12.5-2	2	0.375	0.492	0.295	0.98	0.094	5.00	0.06	0.17	Left
	6163889	TTSIL9.5-12.5-3	3	0.375	0.492	0.295	0.98	0.094	5.00	0.08	0.17	Left
	6163881	TTSIR12.7-14-2	2	0.500	0.551	0.358	1.38	0.102	5.00	0.06	0.23	Right
	6163890	TTSIR12.7-14-3	3	0.500	0.551	0.358	1.38	0.102	5.00	0.08	0.23	Right
	6163883	TTSIR15.9-12.5-2	2	0.625	0.492	0.433	0.79	0.094	6.00	0.06	0.29	Right
	6163885	TTSIR15.9-14-2	2	0.625	0.551	0.433	0.98	0.102	6.00	0.06	0.29	Right
	2802013	TTSIR15.9-14-3	3	0.625	0.551	0.433	0.98	0.102	6.00	0.08	0.29	Right
	6163887	TTSIR15.9-16-2	2	0.625	0.630	0.433	1.58	0.118	6.00	0.06	0.29	Right
	6149669	TTSIR15.9-16-3	3	0.625	0.630	0.433	1.58	0.118	6.00	0.08	0.29	Right
	6163895	TTSIR19-20-3	3	0.750	0.787	0.433	1.58	0.157	6.00	0.08	0.35	Right
	6163879	TTSIR9.5-12.5-2	2	0.375	0.492	0.295	0.98	0.094	5.00	0.06	0.17	Right
	6163888	TTSIR9.5-12.5-3	3	0.375	0.492	0.295	0.98	0.094	5.00	0.08	0.17	Right
