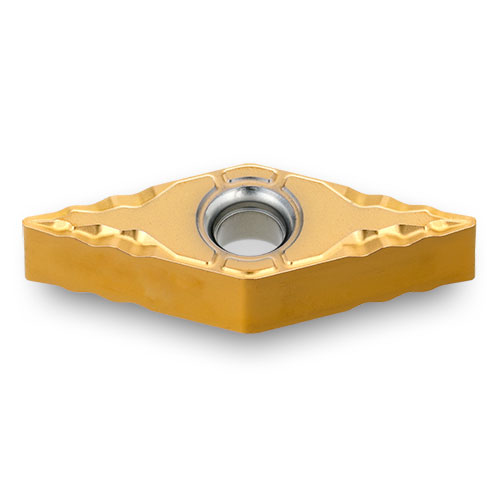

Series: VNMX FX Chipbreaker (RhinoTurn)
Product Series Features:
- Negative 35° rhombic inserts
- For finishing applications
ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness |
fn Cutting Feed Min. |
fn Cutting Feed Max. |
ap Cutting Depth Min. |
ap Cutting Depth Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| VNMX2.531FX | VNMX130404FX | 4 | 0.313 | 0.016 | 0.546 | 0.187 | 0.0020 | 0.0080 | 0.008 | 0.080 | |
| VNMX2.532FX | VNMX130408FX | 4 | 0.313 | 0.031 | 0.546 | 0.187 | 0.0030 | 0.0080 | 0.010 | 0.080 |
