Series: 19R - Full Radius T-Slitter
Product Series Features:
- Ø1.561"
- Multi-Surfer Connection
- .062"-.187" Slot Width
- 10 Flute, Full Effective
- Positive radial and neutral axial rake geometry
EDP |
Part Number |

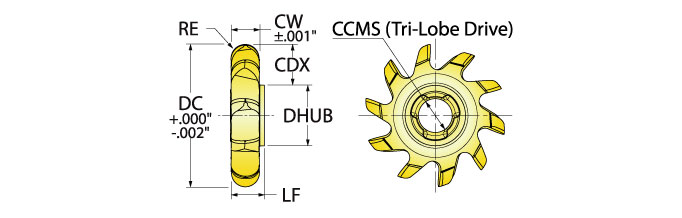

DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer Width |
CW Cutting Width |
CDX Cutting Depth Max. |
LF Functional Length |
ZEFF Eff. Flutes |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2929515 | 19RE1512LRRN06 IN2505 | 1.562 | 0.062 R | 0.125 | 0.430 | 0.390 | 10 | Multi-Surfer LR | 0.670 | NA |
Notes:
- Min. hole dia. to be .06" larger than DC if grooving in a hole.
EDP |
Part Number |
DC Cutting Dia. |
RE/CHW Corner Radius/Chamfer Width |
CW Cutting Width |
CDX Cutting Depth Max. |
LF Functional Length |
ZEFF Eff. Flutes |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2929513 | 19RE1506LRRN03 IN2505 | 1.562 | 0.031 R | 0.062 | 0.430 | 0.390 | 10 | Multi-Surfer LR | 0.670 | NA | NA | NA | |
| 2929514 | 19RE1509LRRN04 IN2505 | 1.562 | 0.047 R | 0.094 | 0.430 | 0.390 | 10 | Multi-Surfer LR | 0.670 | NA | NA | NA | |
| 2929515 | 19RE1512LRRN06 IN2505 | 1.562 | 0.062 R | 0.125 | 0.430 | 0.390 | 10 | Multi-Surfer LR | 0.670 | NA | |||
| 2929516 | 19RE1515LRRN07 IN2505 | 1.562 | 0.078 R | 0.156 | 0.430 | 0.393 | 10 | Multi-Surfer LR | 0.670 | NA | NA | NA | |
| 2929518 | 19RE1518LRRN09 IN2505 | 1.562 | 0.094 R | 0.187 | 0.430 | 0.389 | 10 | Multi-Surfer LR | 0.670 | NA | NA | NA |
