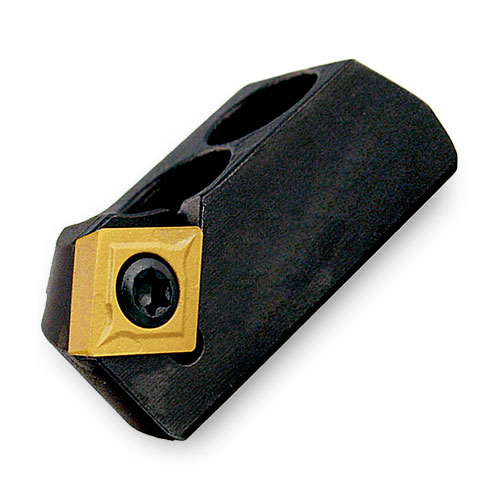

Series: SSSM - Chamfer Cartridge
Product Series Features:
- Use with TS Heads
- Options: 15°, 30°, or 45°
EDP |
ANSI Number |
ISO Number |
KAPR Cutting Edge Angle |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
WF Functional Width |
OAL Overall Length |
INSERT Insert Series |
CASC Cartridge Size Code |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 3211680 | 470500525211 | SSSM25-15 | 15 | 1.02 | 1.50 | 0.49 | 0.91 | CCMT 0602.. | 25 | |
| 3211681 | 470500525213 | SSSM25-30 | 30 | 1.02 | 1.50 | 0.49 | 0.91 | CCMT 0602.. | 25 | |
| 3211682 | 470500525215 | SSSM25-45 | 45 | 1.02 | 1.50 | 0.49 | 0.91 | CCMT 0602.. | 25 | |
| 3211683 | 470500532211 | SSSM32-15 | 15 | 1.36 | 1.93 | 0.59 | 1.22 | CCMT 0602.. | 32 | |
| 3211684 | 470500532213 | SSSM32-30 | 30 | 1.36 | 1.93 | 0.59 | 1.22 | CCMT 0602.. | 32 | |
| 3211685 | 470500532215 | SSSM32-45 | 45 | 1.36 | 1.93 | 0.59 | 1.22 | CCMT 0602.. | 32 | |
| 3211686 | 470500540211 | SSSM40-15 | 15 | 1.83 | 2.60 | 0.75 | 1.54 | CCMT 09T3.. | 40 | |
| 3099811 | 470500540213 | SSSM40-30 | 30 | 1.83 | 2.60 | 0.75 | 1.54 | CCMT 09T3.. | 40 | |
| 3211688 | 470500540215 | SSSM40-45 | 45 | 1.83 | 2.60 | 0.75 | 1.54 | CCMT 09T3.. | 40 | |
| 3211689 | 470500550211 | SSSM50-15 | 15 | 2.56 | 3.46 | 0.87 | 2.09 | CCMT 1204.. | 50 | |
| 3211690 | 470500550213 | SSSM50-30 | 30 | 2.56 | 3.46 | 0.87 | 2.09 | CCMT 1204.. | 50 | |
| 3211691 | 470500550215 | SSSM50-45 | 45 | 2.56 | 3.46 | 0.87 | 2.09 | CCMT 1204.. | 50 |
