Series: 18S - Front Back Corner Round

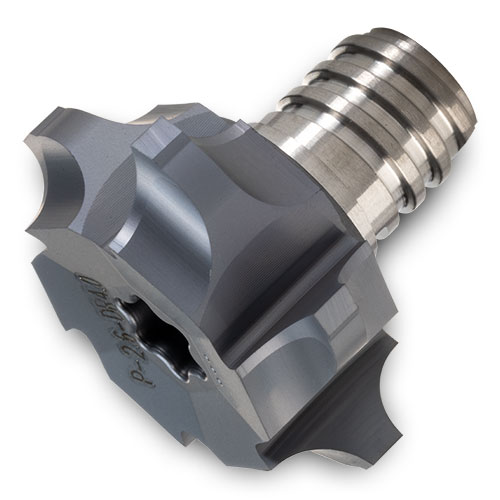

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø27.7 mm
- Chip Surfer Connection
- Corner: 1.0, 2.0, 3.0 & 4.0 mm R
- 6 Flute
EDP |
Part Number |
DCX Cutting Dia. Max. |
DC Cutting Dia. |
PRFRAD Profile Radius |
LF Functional Length |
LF2 Functional Length 2 |
LFS Functional Length Secondary |
FW Flat Width |
ZEFF Eff. Teeth |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2931688 | 18S27799TRRP40 IN2005 | 27.70 mm | 19.70 mm | 4.00 mm | 5.01 mm | 7.59 mm | 11.70 mm | 2.60 mm | 6 | Chip Surfer T10 | 15.30 mm | |||
| 2932004 | 18S27789TRRP30 IN2005 | 27.70 mm | 21.10 mm | 3.00 mm | 4.15 mm | 6.71 mm | 9.70 mm | 2.30 mm | 6 | Chip Surfer T10 | 15.30 mm | |||
| 2932003 | 18S27773TRRP20 IN2005 | 27.70 mm | 22.90 mm | 2.00 mm | 2.81 mm | 5.39 mm | 7.70 mm | 2.60 mm | 6 | Chip Surfer T10 | 15.30 mm | |||
| 2932002 | 18S27756TRRP10 IN2005 | 27.70 mm | 24.80 mm | 1.00 mm | 1.89 mm | 4.60 mm | 6.00 mm | 2.70 mm | 6 | Chip Surfer T10 | 15.30 mm |
Notes:
- Ensure tip is seated firmly on shank (no gap). No lubricant on adaption. Wrenches sold seperately.
- *** Grade IN1530 is phased out, replaced by Grade IN2005. See Product Bulletin tab. ***
