Series: DFH324L001
Product Series Features:
- Tangential Inserts with 4 Cutting Edges
- APMX when using DFH324L001 is .040

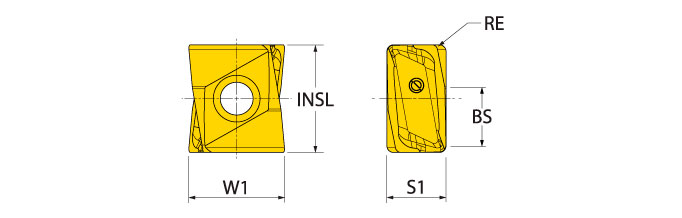

Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|
| DFH324L001 | Finishing | 0.030 | 0.300 | 0.571 | 0.508 | 0.315 | 4 | Left |
Notes:
- Insert screw tightening torque: 30-35in*lb.
- Insert screws M4 × 0.7 × 14.3 mm edp# 7032312
- *Images are a representation of the product series as a whole and therefore may not be the exact item
