Series: 12Y1J (14 mm)

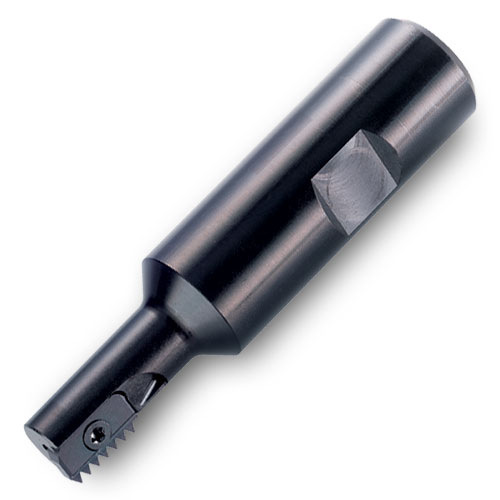

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Indexable Thread Mill Holders
EDP |
Part Number |

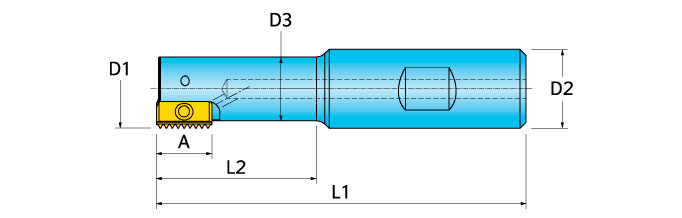

a |
D1 |
D2 Shank |
D3 Body Dia. |
L1 Overall Length |
L2 Extension Length |
NOF No. of Flutes |
|
|---|---|---|---|---|---|---|---|---|---|
| 3026132 | 12Y1J-0701684R01 | 0.551 | 0.790 | 0.750 | 0.630 | 3.660 | 1.570 | 2 |
