Series: TDFX

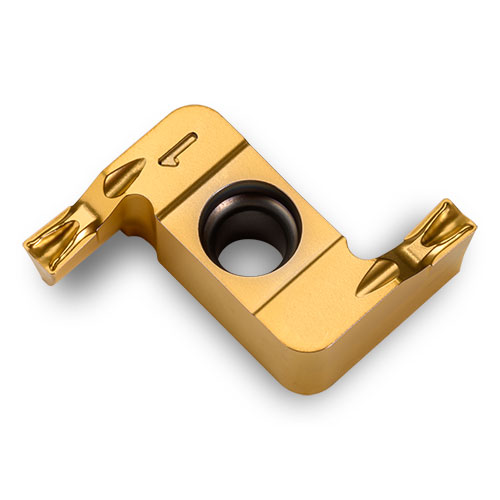

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Pressed Double-Ended Insert
- For Shallow Grooving & Turning
- XU-Type Chipbreaker

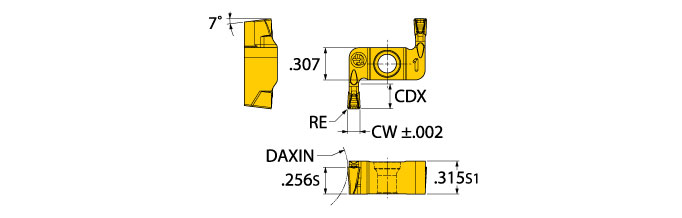

Part Number |
CW Cutting Width |
RE Corner Radius |
CDX Cutting Depth Max. |
S1 Thickness (Overall) |
S Thickness |
DAXIN Axial Groove I.D. Min. |
IH Insert Hand |
FEEDGN Grooving Feed Min. |
FEEDGX Grooving Feed Max. |
FEEDN Turning Feed Min. |
FEEDX Turning Feed Max. |
APMN Turning Depth of Cut Min. |
APMX Turning Depth of Cut Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TDFX2E-0.3-D25L | 0.079 | 0.012 | 0.236 | 0.315 | 0.256 | 0.984 | Left | 0.001 | 0.008 | 0.005 | 0.007 | 0.016 | 0.047 | |
| TDFX2E-0.3-D25R | 0.079 | 0.012 | 0.236 | 0.315 | 0.256 | 0.984 | Right | 0.001 | 0.008 | 0.005 | 0.007 | 0.016 | 0.047 | |
| TDFX3E-0.3-D24L | 0.118 | 0.012 | 0.236 | 0.315 | 0.256 | 0.945 | Left | 0.003 | 0.008 | 0.006 | 0.008 | 0.016 | 0.071 | |
| TDFX3E-0.3-D24R | 0.118 | 0.012 | 0.236 | 0.315 | 0.256 | 0.945 | Right | 0.003 | 0.008 | 0.006 | 0.008 | 0.016 | 0.071 | |
| TDFX4E-0.4-D32L | 0.157 | 0.016 | 0.236 | 0.315 | 0.256 | 1.260 | Left | 0.004 | 0.010 | 0.006 | 0.010 | 0.020 | 0.095 | |
| TDFX4E-0.4-D32R | 0.157 | 0.016 | 0.236 | 0.315 | 0.256 | 1.260 | Right | 0.004 | 0.010 | 0.006 | 0.010 | 0.020 | 0.095 |
