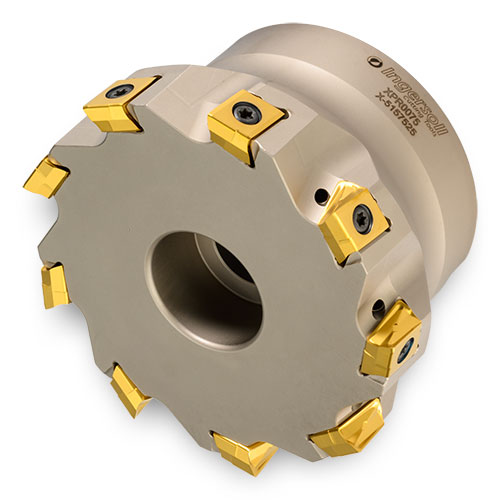

Series: EJ5D, EJ6D - 90° Face Mill
Product Series Features:
- Ø2.000-6.000"
- 13 mm insert with 4 indexes
- .479" Max. depth of cut
- Insert corners: .031", .062", .125" R
EDP |
Part Number |
DC Cutting Dia. |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Bore Dia. |
KWW Keyway |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2925988 | EJ6D-02R02 | 2.500 | 1.570 | 5 | 0.7500 | 0.312 | 0.8 | NA |
Notes:
- Insert screw tightening torque: 30-35 in*lb
- *Images are a representation of the product series and therefore may not be an exact representation of the specific item
EDP |
Part Number |
DC Cutting Dia. |
OAL Overall Length |
ZEFF Eff. Teeth |
DCON Bore Dia. |
KWW Keyway |
RMPX Ramp Angle Max. |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2925989 | EJ5D-02R01 | 2.000 | 1.570 | 5 | 0.7500 | 0.312 | 1.0 | NA | |||
| 2925973 | EJ6D-02R01 | 2.000 | 1.570 | 4 | 0.7500 | 0.312 | 1.0 | NA | |||
| 2925987 | EJ5D-02R02 | 2.500 | 1.570 | 6 | 0.7500 | 0.312 | 0.8 | NA | |||
| 2925986 | EJ5D-02R03 | 2.500 | 1.570 | 6 | 1.0000 | 0.375 | 0.8 | NA | |||
| 2925988 | EJ6D-02R02 | 2.500 | 1.570 | 5 | 0.7500 | 0.312 | 0.8 | NA | |||
| 2925984 | EJ5D-03R01 | 3.000 | 2.000 | 7 | 1.0000 | 0.375 | 0.6 | NA | |||
| 2925985 | EJ6D-03R01 | 3.000 | 2.000 | 5 | 1.0000 | 0.375 | 0.6 | NA | |||
| 2925981 | EJ5D-04R01 | 4.000 | 2.375 | 9 | 1.5000 | 0.625 | 0.4 | NA | |||
| 2925983 | EJ6D-04R01 | 4.000 | 2.375 | 7 | 1.2500 | 0.500 | 0.4 | NA | |||
| 2925982 | EJ6D-04R02 | 4.000 | 2.375 | 7 | 1.5000 | 0.625 | 0.4 | NA | |||
| 2925980 | EJ6D-05R01 | 5.000 | 2.500 | 11 | 1.5000 | 0.625 | 0.3 | NA | |||
| 2925979 | EJ6D-06R01 | 6.000 | 2.500 | 13 | 1.5000 | 0.625 | 0.3 | NA |
