Series: TPHT-ML
Product Series Features:

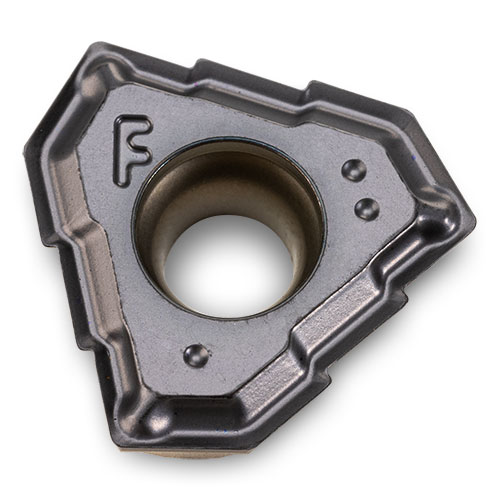

- 3 Cornered Stepped Outboard Insert with Wiper Flats for Deep Trio
- General Purpose for Lower Powered Machines or
- Lower Feed Applications
Part Number |
IC Inscribed Circle Dia. |
RE Corner Radius |
S Thickness |
|
|---|---|---|---|---|
| TPHT070304R-ML | 0.302 | 0.016 | 0.090 | |
| TPHT080305R-ML | 0.337 | 0.020 | 0.110 | |
| TPHT090305R-ML | 0.328 | 0.020 | 0.118 | |
| TPHT100305R-ML | 0.363 | 0.020 | 0.130 | |
| TPHT110405R-ML | 0.409 | 0.020 | 0.150 | |
| TPHT120405R-ML | 0.456 | 0.020 | 0.169 | |
| TPHT130408R-ML | 0.506 | 0.031 | 0.187 |
