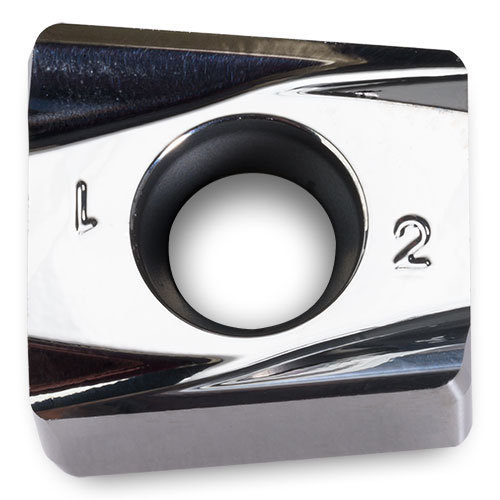

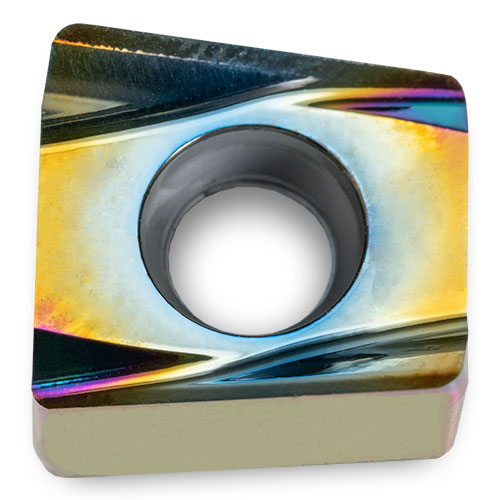

Series: ANED12_AL - Insert for non-ferrous
Product Series Features:
- Pressed rake face geometry promotes efficient chip evacuation
- Crowned wiper produces surface finishes as good as 3 Ra
- Sharp & polished for aluminum & other non-ferrous materials
- 4 Indexes
Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
BSR Wiper Radius |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| ANED1207-AL | Finishing, Sharp | 0.031 | 0.412 | 39.400 | 0.020 | 0.472 | 0.413 | 0.358 | 4 | Right |
