Series: TRGTS - 75° Adjustable End Mill
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø1.000-1.500"
- TopOn Connection
- .16" DOC with single or double tip insert
- .43" DOC with full edge insert

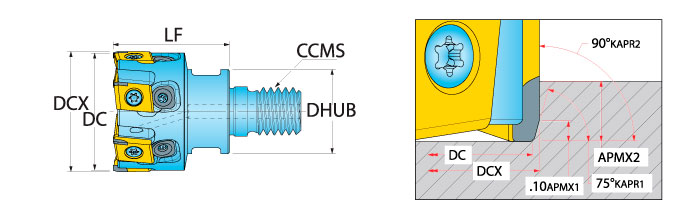

EDP |
Part Number |
DC Cutting Dia. |
DCX Cutting Dia. Max. |
LF Functional Length |
ZEFF Eff. Teeth |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
|
|---|---|---|---|---|---|---|---|---|
| 2743146 | TRGTS12I010-03-00 | 1.000 | 1.000 | 1.57 | 3 | TopOn M12 | 0.82 | |
| 2743147 | TRGTS16I012-05-00 | 1.250 | 1.250 | 1.57 | 5 | TopOn M16 | - | |
| 2743148 | TRGTS16I015-06-00 | 1.500 | 1.500 | 1.57 | 6 | TopOn M16 | 0.82 |
