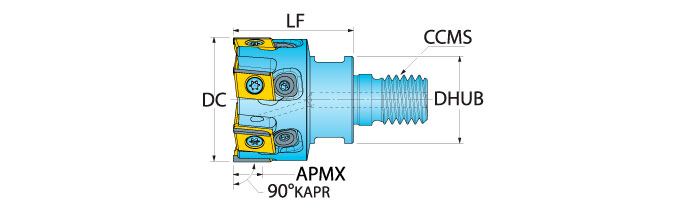

Series: TUGTS - 90° Adjustable End Mill
Product Series Features:
- Ø25-40 mm
- TopOn Connection
- 4 mm DOC with single or double tip insert
- 11 mm DOC with full edge insert
EDP |
Part Number |
DC Cutting Dia. |
LF Functional Length |
ZEFF Eff. Teeth |
CCMS Connection Code Machine Side |
|
|---|---|---|---|---|---|---|
| 2743141 | TUGTS10D020-02-00 | 21.40 mm | 38.0 mm | 2 | TopOn M10 | |
| 2744559 | TUGTS12D025-03-00 | 25.00 mm | 40.0 mm | 3 | TopOn M12 | |
| 2744560 | TUGTS16D032-05-00 | 32.00 mm | 40.0 mm | 5 | TopOn M16 | |
| 2744561 | TUGTS16D040-06-00 | 40.00 mm | 40.0 mm | 6 | TopOn M16 |
