Series: RCLT19, .750" IC Round

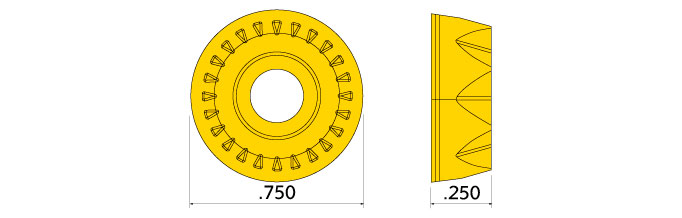

Representative image shown ⓘ
The image depicts a tool in the product series and is for illustrative purposes only. Actual product may vary.
Product Series Features:
- Button milling insert with chip breakers
- Single-sided
Part Number |
Application |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|
| RCLT190600N-HR | Standard | 0.750 | 0.250 | 4 | Neutral |
Notes:
- **Note, obsolete product line. Refer to new Form Master Shear, insert series RJLT19 & RJLW19.
