Series: LXD323
Product Series Features:
- Milling Insert
Part Number |
Application |
RE Corner Radius |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| LXD323-100 | Multi-Purpose | 0.047 | 0.625 | 0.375 | 0.205 | 8 | Neutral | |
| LXD323-101 | Multi-Purpose | 0.031 | 0.625 | 0.375 | 0.205 | 8 | Neutral | |

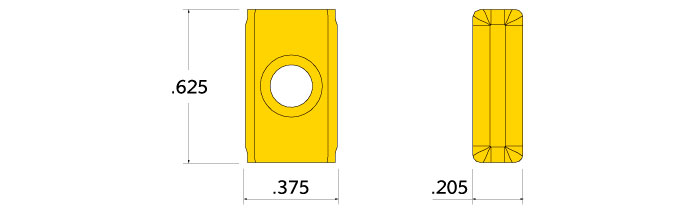

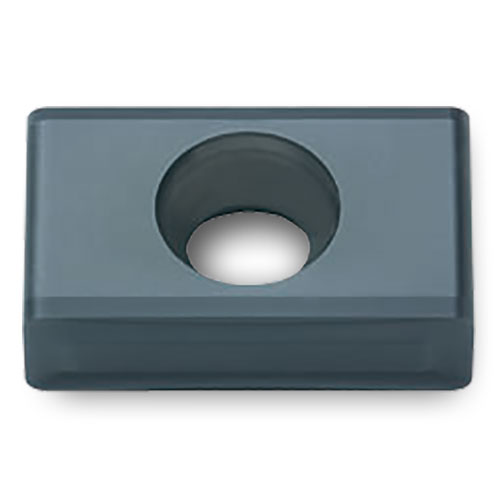

| LXD323-110 | Cast Iron | 0.031 | 0.625 | 0.375 | 0.205 | 8 | Neutral |
