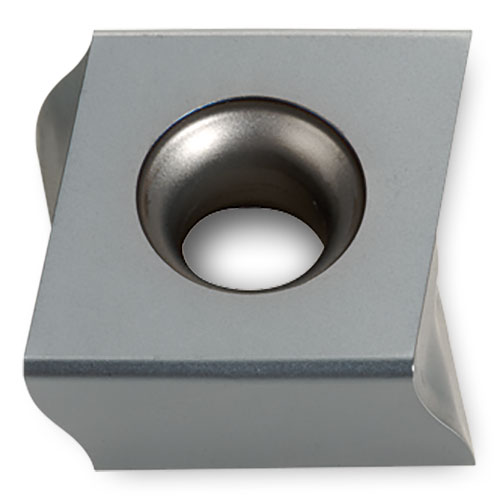

Series: DPM424R/L (15 mm)
Product Series Features:
- S-Max 15 mm Inserts
- R/L Handed Inserts
- 4 Indexes
Part Number |
Application |
RE Corner Radius |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| DPM424R001 | Multi-Purpose | 0.031 | 0.591 | 0.645 | 0.300 | 4 | Right | |
| DPM424R002 | Multi-Purpose | 0.062 | 0.984 | 0.695 | 0.375 | 4 | Right | |
| DPM424R003 | Multi-Purpose | 0.093 | 0.984 | 0.695 | 0.375 | 4 | Right | |
| DPM424R004 | Multi-Purpose | 0.125 | 0.984 | 0.695 | 0.375 | 4 | Right | |
| ZPM424R001 | Serrated | 0.031 | 0.984 | 0.695 | 0.375 | 4 | Right |
