Series: SELW

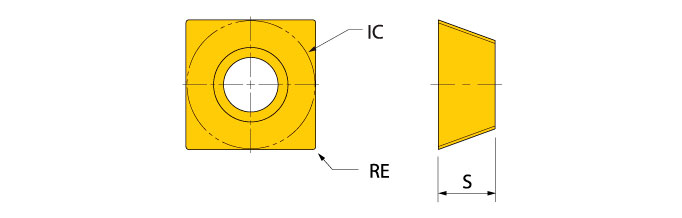

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Spotting insert
- 4 indexes
Part Number |
Application |
RE Corner Radius |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|
| SELW100403N | Multi-Purpose | 0.010 | 0.414 | 0.181 | 4 | Neutral |
