Series: Wrench CHIP SURFER

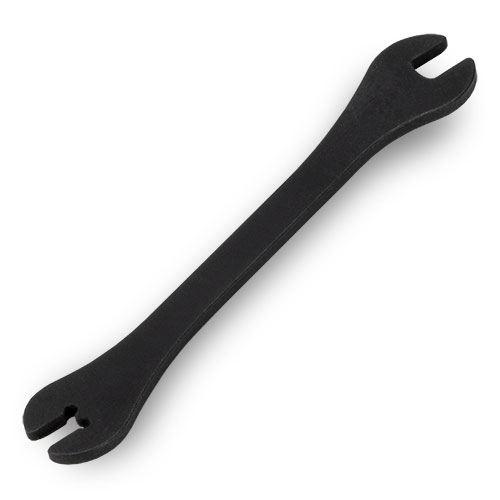

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Thin Open End Wrenches for use with Chip Surfer tips
- Do not use lubricant on adaption
- When assembling, be sure tip is seated firmly on shank with no
- Optional Accessory Item
- Tip should seat firmly on shank with no gap when assembling
EDP |
Part Number |
ISO Number |
DRVS Drive Size |
DRVS2 Drive Size |
CCWS Connection Code Workpiece Side |
DXF File |
|
|---|---|---|---|---|---|---|---|
| 7019144 | KIT CHIP SURFER WRENCH | KIT CHIP SURFER WRENCH | Various - As Shown | Various - As Shown | Chip Surfer T05 - T15 | NA | |
| 7008923 | WS-0029 | WS-0029 | 5 mm External | 8 mm External | Chip Surfer T06 | NA | |
| 7008924 | WS-0030 | WS-0030 | 7 mm External | 10 mm External | Chip Surfer T08 | NA | |
| 7010559 | WS-0043 | WS-0043 | 4 mm External | 6 mm External | Chip Surfer T05 | NA | |
| 7010560 | WS-0044 | WS-0044 | 8 mm External | 13 mm External | Chip Surfer T10 | NA | |
| 7010949 | WS-0059 | WS-0059 | 9 mm External | 16 mm External | Chip Surfer T12 | NA | |
| 4305309 | WS-0061 | WS-0061 | 20 mm External | - | Chip Surfer T15 | NA |
Notes:
- Tightening Torque:
- T05= 60 in lb
- T06= 90 in lb
- T08= 130 in lb
- T10= 250 in lb
- T12= 250 in lb
- T15= 350 in lb
