Series: SPKR

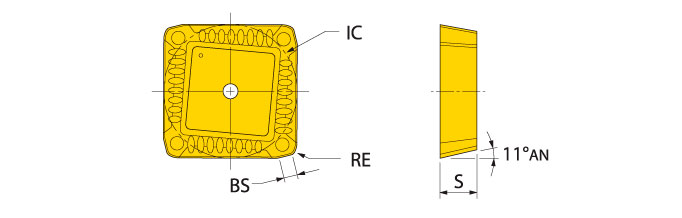

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- ISO Milling inserts for 75° Lead Mills
- Wedge-held inserts
- Integrated wiper
- 4 indexes
Part Number |
Application |
BCH Corner Chamfer Length |
BS Wiper Length |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| SPKR1203EDR-EM | Positive Geometry | 0.039 | 0.052 | 0.500 | 0.125 | 4 | Right | |
| SPKR1504EDTR-EM | Positive Geometry | 0.039 | 0.052 | 0.625 | 0.187 | 4 | Right |
