Series: TDFT-E CE

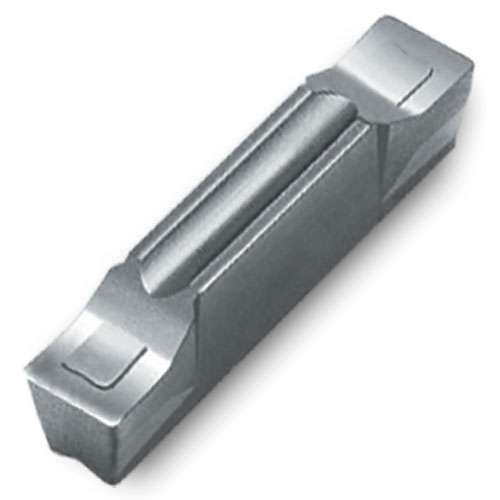

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Pressed Ceramic Inserts for Face Grooving and Turning
- T-type Chipbreakers

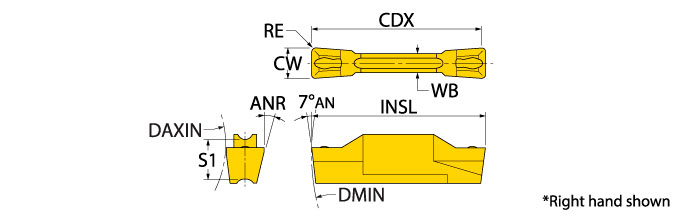

Part Number |
SSC Insert Seat Size |
CW Cutting Width |
RE Corner Radius |
CDX Cutting Depth Max. |
WB Body Width |
INSL Insert Length |
S1 Thickness (Overall) |
NOI Number of Indexes |
AN Clearance Angle Major |
DAXIN Axial Groove I.D. Min. |
IH Insert Hand |
FEEDGN Grooving Feed Min. |
FEEDGX Grooving Feed Max. |
FEEDN Turning Feed Min. |
FEEDX Turning Feed Max. |
APMN Turning Depth of Cut Min. |
APMX Turning Depth of Cut Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TDFT4E-0.4TRCE | 4 | 0.157 | 0.016 | 0.748 | 0.118 | 0.790 | 0.185 | 2 | 7 | 0.709 | Right | 0.004 | 0.014 | 0.007 | 0.012 | 0.020 | 0.094 |
