Series: 25J3J - 90° Body for End Cap

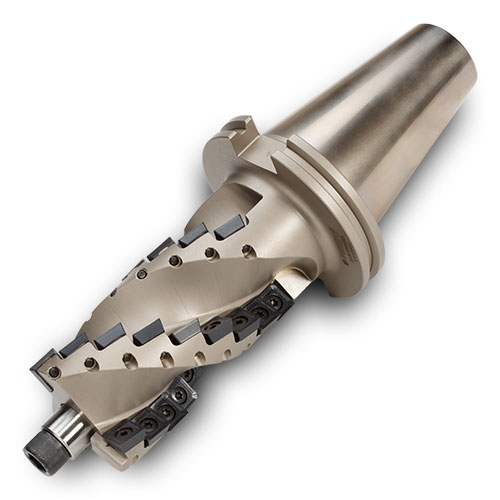

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø2.500" (50 Taper)
- All Eff. / RH Helix
- 14 mm Insert with 4 indexes
- Insert corner: .031"
- For use with End Cap 25J3J-25EC172R01
EDP |
Part Number |
DC Cutting Dia. |
APMX Depth of Cut Max. |
LUX Usable Length Max. |
LF Functional Length |
OAL Overall Length |
ZNF Face Insert Count |
ZNP Peripheral Insert Count |
NOF Flute Count |
CCMS Connection Code Machine Side |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3007150 | 25J3J-25HL448R01 | 2.500 | 2.920 | - | 4.57 | 8.72 | - | 18 | 3 | ICTC #50 .125 Draw | n/a | NA | ||
| 3007151 | 25J3J-25HL648R01 | 2.500 | 4.350 | - | 6.07 | 10.20 | - | 27 | 3 | ICTC #50 .125 Draw | NA |
