Series: SPG

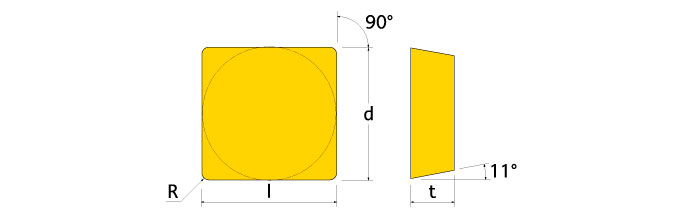

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Positive 11° clearance square ceramic inserts
ANSI Number |
ISO Number |
NOI Number of Indexes |
IC Inscribed Circle Dia. |
RE Corner Radius |
L Cutting Edge Length |
S Thickness |
fn Cutting Feed Min. |
fn Cutting Feed Max. |
ap Cutting Depth Min. |
ap Cutting Depth Max. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPG422 | SPGN120308 | 4 | 0.500 | 0.031 | 0.469 | 0.125 | 0.002 | 0.008 | 0.004 | 0.138 | |
| SPG433 | SPGN120412 | 4 | 0.500 | 0.047 | 0.453 | 0.187 | 0.002 | 0.008 | 0.004 | 0.138 |
