Series: OFCR07 - Multi-Purpose
Product Series Features:
- Insert for 45° Mills
- Pressed rake face geometry promotes efficient chip formation
- Wedge-held insert
- Integrated wiper
- 8 indexes

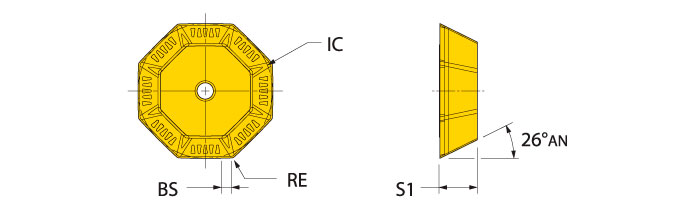

Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
IC Inscribed Circle Dia. |
S1 Thickness (Overall) |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| OFCR0704TN-EML | Hi-Temp/Ti | 0.031 | 0.066 | 0.706 | 0.197 | 8 | Right | |
| OFCR0704TN-ML | Hi-Temp/Ti | 0.031 | 0.066 | 0.706 | 0.197 | 8 | Right |
Notes:
- Insert for Obsolete cutter series 5N2L / TFM43AOFW
