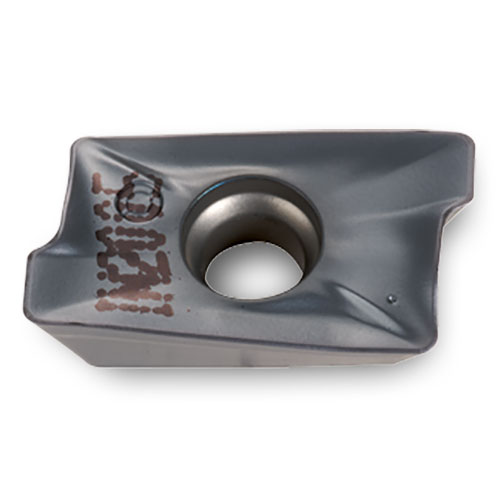

Series: AOMT18 - Multi-Purpose Insert
Product Series Features:
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flat on face for producing surface finishes as good as 32 Ra
- Diverse corner configurations
- Designed for multiple materials and applications
- 2 Indexes
Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| AOMT180508R | Multi-Purpose | 0.031 | 0.092 | 0.660 | 0.767 | 0.423 | 0.219 | 2 | Right | |
| AOMT180516R | Multi-Purpose | 0.062 | 0.062 | 0.660 | 0.767 | 0.422 | 0.219 | 2 | Right | |
| AOMT180524R | Multi-Purpose | 0.093 | 0.030 | 0.660 | 0.767 | 0.422 | 0.219 | 2 | Right | |
| AOMT180532R | Multi-Purpose | 0.125 | - | 0.650 | 0.765 | 0.422 | 0.219 | 2 | Right | |
| AOMT180548R | Multi-Purpose | 0.187 | - | 0.640 | 0.688 | 0.422 | 0.217 | 2 | Right | |
| AOMT180564R | Multi-Purpose | 0.250 | - | 0.640 | 0.685 | 0.422 | 0.217 | 2 | Right |
