Series: SHEW15 - Flat Top Insert

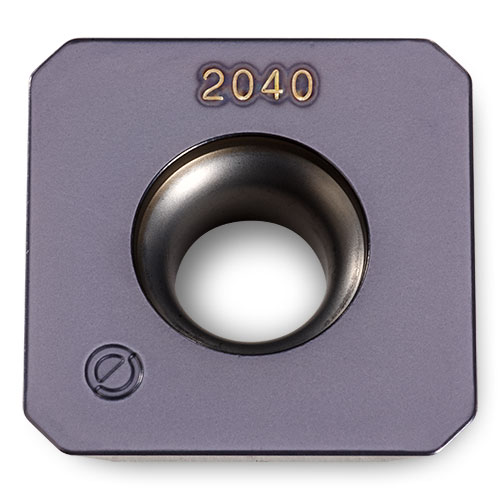

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Flat Top geometry for extra durability
- 4 indexes
Part Number |
Application |

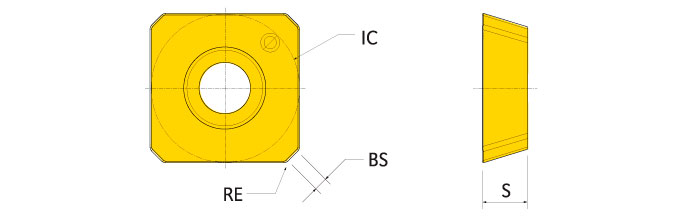

RE Corner Radius |
BS Wiper Length |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| SHEW1504AJTN | Flat Top | 0.030 | 0.055 | 0.625 | 0.187 | 4 | Neutral |
