Series: XPET14_P - Insert for Non-Ferrous
Product Series Features:
- Up-sharp edge & polished rake face for non-ferrous materials
- Safety with 2 insert screws for high RPM spindles
- 2 Indexes

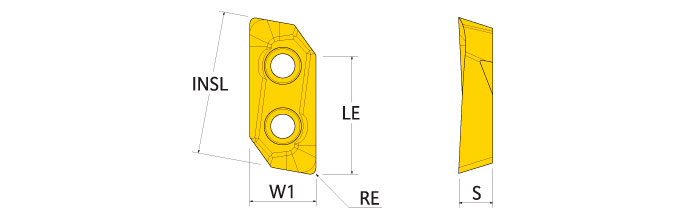

Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| XPET140405FR-P | Grd/Pol for Al | 0.020 | 0.019 | 0.620 | 0.751 | 0.362 | 0.186 | 2 | Right | |
| XPET140408FR-P | Grd/Pol for Al | 0.031 | 0.008 | 0.620 | 0.751 | 0.362 | 0.186 | 2 | Right | |
| XPET140416FR-P | Grd/Pol for Al | 0.062 | - | 0.620 | 0.751 | 0.362 | 0.185 | 2 | Right | |
| XPET140420FR-P | Grd/Pol for Al | 0.079 | - | 0.620 | 0.751 | 0.362 | 0.185 | 2 | Right | |
| XPET140424FR-P | Grd/Pol for Al | 0.093 | - | 0.620 | 0.751 | 0.362 | 0.182 | 2 | Right | |
| XPET140430FR-P | Grd/Pol for Al | 0.118 | - | 0.620 | 0.751 | 0.362 | 0.182 | 2 | Right | |
| XPET140432FR-P | Grd/Pol for Al | 0.125 | - | 0.620 | 0.751 | 0.362 | 0.180 | 2 | Right | |
| XPET140440FR-P | Grd/Pol for Al | 0.157 | - | 0.620 | 0.751 | 0.362 | 0.180 | 2 | Right |
