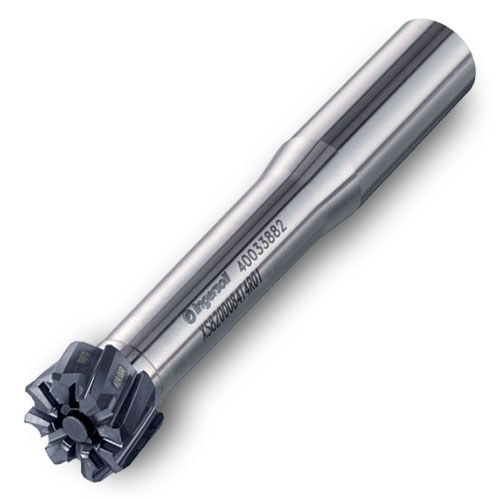

Series: XS - QwikReam Shanks
Product Series Features:
- Steel Cylindrical Shank
- 1.5xD
- 3xD
- 5xD
- 8xD
EDP |
Part Number |
DCN Cutting Dia. Min. |
DCX Cutting Dia. Max. |
SSC Insert Seat Size |
S Thickness |
LU Usable Length |
LF Functional Length |
LS Shank Length |
DCON Shank Dia. |
CSP Coolant |
DXF File |
STEP File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3212101 | XS5044222S6R01 | 0.4530 (11.506 mm) | 0.5310 (13.487 mm) | XT5 | 0.366 | 2.77 | 4.56 | NA | 0.625 | Yes | n/a | ||
| 3212103 | XS5044355S6R01 | 0.4530 (11.506 mm) | 0.5310 (13.487 mm) | XT5 | 0.366 | 4.38 | 6.16 | NA | 0.625 | Yes | n/a | n/a | |
| 3338473 | XS5045117S6R01 | 0.4530 (11.506 mm) | 0.5310 (13.487 mm) | XT5 | 0.374 | 0.92 | 2.69 | - | 0.625 | Yes | n/a | n/a | |
| 3338475 | XS6053132S6R01 | 0.5316 (13.503 mm) | 0.6299 (16.000 mm) | XT6 | 0.374 | 1.04 | 2.84 | NA | 0.625 | Yes | n/a | n/a | |
| 3241011 | XS6053226S6R01 | 0.5316 (13.503 mm) | 0.6299 (16.000 mm) | XT6 | 0.374 | 1.93 | 3.78 | NA | 0.625 | Yes | n/a | n/a | |
| 3241014 | XS6053350S6R01 | 0.5316 (13.503 mm) | 0.6299 (16.000 mm) | XT6 | 0.370 | 3.19 | 5.04 | NA | 0.625 | Yes | n/a | ||
| 3212166 | XS6053540S6R01 | 0.5316 (13.503 mm) | 0.6299 (16.000 mm) | XT6 | 0.374 | 5.08 | 6.94 | NA | 0.625 | Yes | |||
| 3338477 | XS7063160S7R01 | 0.6300 (16.002 mm) | 0.7874 (20.000 mm) | XT7 | 0.421 | 1.29 | 3.15 | NA | 0.750 | Yes | n/a | n/a | |
| 3241012 | XS7063278S7R01 | 0.6300 (16.002 mm) | 0.7874 (20.000 mm) | XT7 | 0.421 | 2.40 | 4.33 | NA | 0.750 | Yes | n/a | n/a | |
| 3241015 | XS7063433S7R01 | 0.6300 (16.002 mm) | 0.7874 (20.000 mm) | XT7 | 0.421 | 3.97 | 5.91 | NA | 0.750 | Yes | n/a | ||
| 3212167 | XS7063670S7R01 | 0.6300 (16.002 mm) | 0.7874 (20.000 mm) | XT7 | 0.421 | 6.33 | 8.27 | NA | 0.750 | Yes | |||
| 3338479 | XS8079201S7R01 | 0.7875 (20.003 mm) | 1.0000 (25.400 mm) | XT8 | 0.508 | 1.73 | 3.47 | NA | 0.750 | Yes | n/a | n/a | |
| 3241013 | XS8079331S7R01 | 0.7875 (20.003 mm) | 1.0000 (25.400 mm) | XT8 | 0.504 | 3.07 | 5.16 | NA | 0.750 | Yes | n/a | n/a | |
| 3241016 | XS8079531S7R01 | 0.7870 (19.990 mm) | 1.0000 (25.400 mm) | XT8 | 0.504 | 4.53 | 6.89 | NA | 0.750 | Yes | n/a | ||
| 3212168 | XS8079841S7R01 | 0.7875 (20.003 mm) | 1.0000 (25.400 mm) | XT8 | 0.508 | 9.84 | 8.38 | NA | 0.750 | No | n/a | ||
| 3338481 | XS9010240S9R01 | 1.0001 (25.403 mm) | 1.2600 (32.004 mm) | XT9 | 0.508 | 1.96 | 4.25 | NA | 1.250 | Yes | n/a | n/a | |
| 3212184 | XS9250076S9R01 | 1.0001 (25.403 mm) | 1.2600 (32.004 mm) | XT9 | 0.508 | 4.22 | 6.07 | NA | 1.250 | Yes | n/a | ||
| 3212169 | XS9250105S9R01 | 1.0001 (25.403 mm) | 1.2600 (32.004 mm) | XT9 | 0.504 | 10.08 | 12.37 | NA | 1.250 | Yes | n/a | n/a | |
| 3212185 | XS9250127S9R01 | 1.0001 (25.403 mm) | 1.2600 (32.004 mm) | XT9 | 0.508 | 6.30 | 8.59 | NA | 1.250 | No | n/a |
