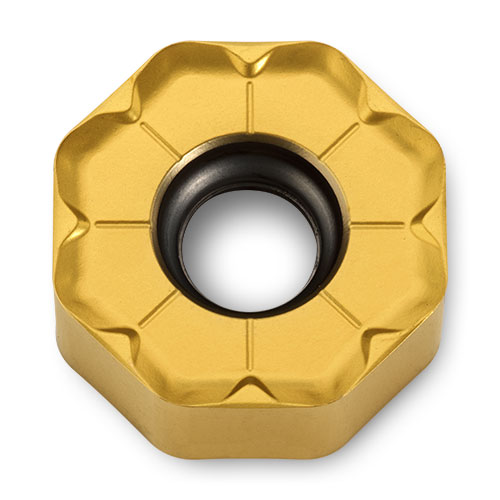

Series: ONCU05_TN - Anti-Notch Insert
Product Series Features:
- Reinforced edge zone to diffuse notching at the depth of cut
- Positive rake at insert corner to diffuse piece part breakout
- Large corner radius for durability
- 16 indexes
Part Number |
Application |
RE Corner Radius |
LE Cutting Edge Eff. Length |
L Insert Length |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|
| ONCU050520TN | Anti-Notch | 0.079 | 0.044 | 0.100 | 0.521 | 0.213 | 16 | Neutral |
