Series: ENHU05-PH - Insert for SS/HiTemp/Ti
Product Series Features:
- Keen edge for SS/Hi-Temp/Ti
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flats
- 2 Indexes

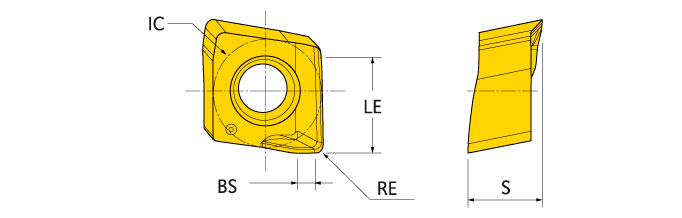

Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|
| ENHU050304R-PH | SS/Hi-Temp/Ti | 0.015 | 0.030 | 0.180 | 0.203 | 0.133 | 2 | Right | |
| ENHU050308R-PH | SS/Hi-Temp/Ti | 0.031 | 0.015 | 0.180 | 0.203 | 0.133 | 2 | Right |
