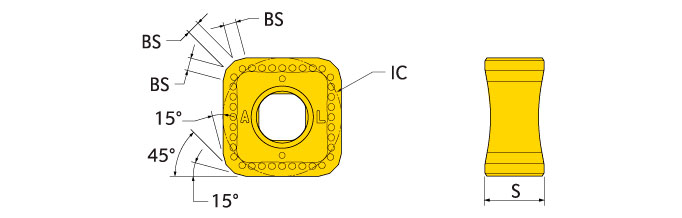

Series: SNGU12_P - Insert for Non-Ferrous
Product Series Features:
- Sharp edge & polished rake face for non-ferrous materials
- Integrated wiper flats
- 8 indexes
Part Number |
Application |
BCH Corner Chamfer Length |
BS Wiper Length |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| SNGU1205EFN-P | Grd/Pol for Al | 0.040 | 0.040 | 0.500 | 0.250 | 8 | Neutral |
