Series: XEVT22_P - Insert for Non-Ferrous
Product Series Features:
- Up-sharp edge & polished rake face for non-ferrous materials
- Integrated wiper for surface finishes as good as 15 Ra
- 2 Indexes

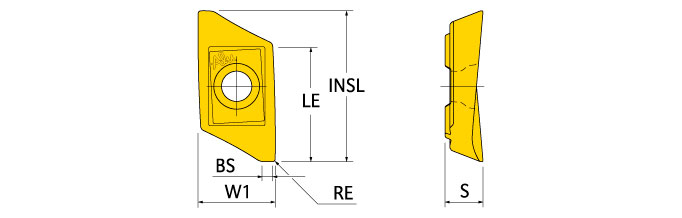

Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| XEVT220605FR-P | Grd/Pol for Al | 0.020 | 0.067 | 0.820 | 1.102 | 0.535 | 0.291 | 2 | Right | |
| XEVT220608FR-P | Grd/Pol for Al | 0.031 | 0.051 | 0.820 | 1.102 | 0.535 | 0.291 | 2 | Right | |
| XEVT220616FR-P | Grd/Pol for Al | 0.062 | 0.051 | 0.820 | 1.075 | 0.535 | 0.287 | 2 | Right | |
| XEVT220632FR-P | Grd/Pol for Al | 0.125 | 0.043 | 0.820 | 1.020 | 0.535 | 0.283 | 2 | Right | |
| XEVT220640FR-P | Grd/Pol for Al | 4.00 mm | 0.047 | 0.780 | 0.976 | 0.530 | 0.279 | 2 | Right | |
| XEVT220650FR-P | Grd/Pol for Al | 5.00 mm | 0.051 | 0.820 | 0.937 | 0.530 | 0.276 | 2 | Right | |
| XEVT220664FR-P | Grd/Pol for Al | 0.250 | 0.051 | 0.820 | 0.882 | 0.535 | 0.268 | 2 | Right |
