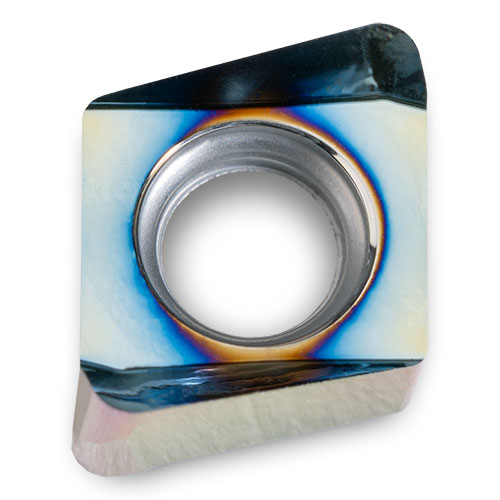

Series: MNCU06_P - Insert for Alum, Face Wiper
Product Series Features:
- Pressed rake face geometry promotes efficient chip formation
- Sharp edge & polished rake face for non-ferrous materials
- Integrated wiper flat on face for producing 32-63 Ra surface finishes
- To be loaded in all pockets of the cutter
- 4 Indexes
Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| MNCU060304FR-P | Grd/Pol for Al - Face Wiper | 0.015 | 0.039 | 0.240 | 0.260 | 0.260 | 0.196 | 4 | Right | |
| MNCU060308FR-P | Grd/Pol for Al - Face Wiper | 0.031 | 0.023 | 0.230 | 0.260 | 0.260 | 0.190 | 4 | Right |
