Series: BOMT17 - Heavy Duty Insert
Product Series Features:
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flat on face for producing surface finishes as good as 32 Ra
- Additional thickness adds durability & higher rake angles than AOMT17
- Designed for multiple materials and applications
- 2 Indexes

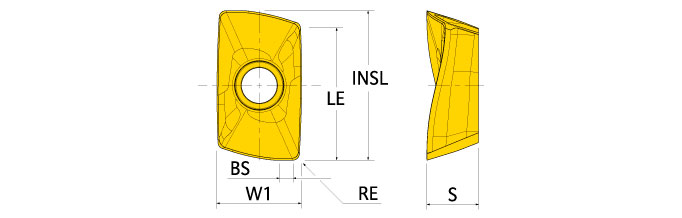

Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| BOMT170608R | Heavy-Duty | 0.031 | 0.086 | 0.630 | 0.744 | 0.421 | 0.256 | 2 | Right |
