Series: ANHU16_FR - Insert for SS/Hi-Temps

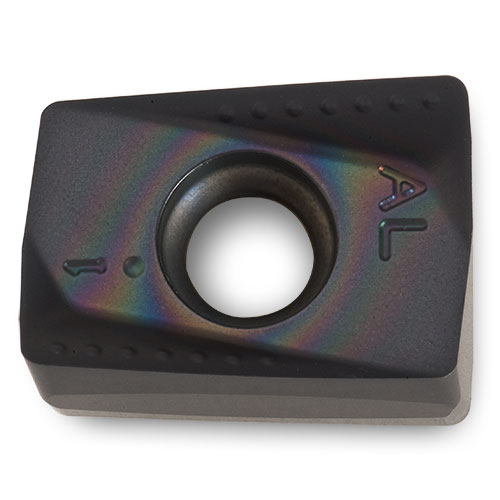

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Keen edge for SS/Hi-Temp Alloys
- Integrated wiper flat on face for producing surface finishes as good as 40 Ra
- Pressed rake face geometry promotes efficient chip formation
- 4 Indexes
Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| ANHU160708FR | SS/Hi-Temp/Ti | 0.031 | 0.055 | 0.590 | 0.630 | 0.433 | 0.417 | 4 | Right |
