Series: PNCU08_GNR - SiN Insert
Product Series Features:
- Pressed rake face geometry promotes efficient chip formation
- Integrated wiper flat produces surface finishes as good as 32 Ra
- Designed for iron on facing applications
- 10 indexes
EDP |
Part Number |
Application |

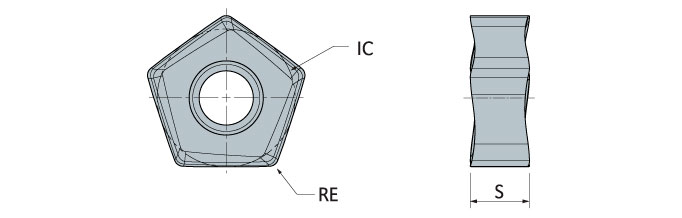

RE Corner Radius |
IC Inscribed Circle Dia. |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| 5811959 | PNCU0805GNR IN70N | Multi-Purpose | 0.031 | 0.450 | 0.190 | 10 | Right |
