Series: BOCT13_P - Insert for Non-Ferrous
Product Series Features:
- Up-sharp edge & polished rake face
- Ideal for non-ferrous materials
- 2 Indexes

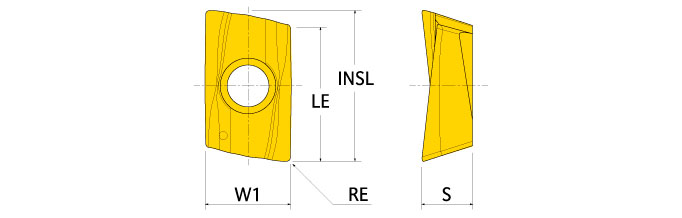

Part Number |
Application |
RE Corner Radius |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|

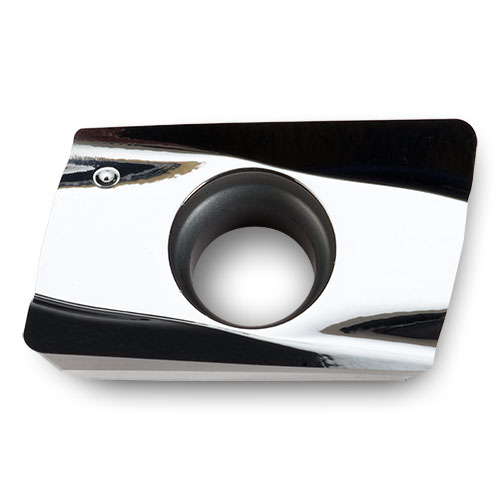

| BOCT130404FR-P | Grd/Pol for Al | 0.015 | 0.490 | 0.557 | 0.320 | 0.189 | 2 | Right | |
| BOCT130408FR-P | Grd/Pol for Al | 0.031 | 0.490 | 0.555 | 0.319 | 0.187 | 2 | Right |
