Series: MOD*T*SK
Product Series Features:
- TopOn to Chip Surfer Connection
- Coolant through the center
- Do not apply lubricant to the threaded connection
- *See Notes below
EDP |
ANSI Number |
ISO Number |
CCMS Connection Code Machine Side |
CCWS Connection Code Workpiece Side |
LB Body Length |
LPR Protruding Length |
BD Body Dia. |
BHTA Body Half Taper Angle |
DF Flange Dia. |
CNSC Coolant Entry Style Code |
CXSC Coolant Exit Style Code |
DRVS Drive Size |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3759806 | MOD08T06SK025 | T06M08-25/1.0 | TopOn M08 | Chip Surfer T06 | 0.445 | 0.98 | 0.366 | 2 | 0.512 | 1 | 1 | 11 mm Over Flats | ||||
| 2928099 | MOD06T06SK016 | T06M06-16/.63 | TopOn M06 | Chip Surfer T06 | 0.457 | 0.63 | 0.366 | 2 | 0.382 | 1 | 1 | 8 mm Over Flats | ||||
| 2928092 | MOD10T06SK025 | T06M10-25/1.0 | TopOn M10 | Chip Surfer T06 | 0.654 | 0.98 | 0.378 | 5 | 0.709 | 1 | 1 | 11 mm Over Flats | ||||
| 2927885 | MOD08T06SK016 | T06M08-16/.63 | TopOn M08 | Chip Surfer T06 | 0.539 | 0.63 | 0.378 | 6 | 0.512 | 1 | 1 | 11 mm Over Flats | ||||
| 2928093 | MOD08T08SK016 | T08M08-16/.63 | TopOn M08 | Chip Surfer T08 | 0.213 | 0.63 | 0.461 | 11 | 0.512 | 1 | 1 | 11 mm Over Flats | ||||
| 2928100 | MOD08T08SK025 | T08M08-25/1.0 | TopOn M08 | Chip Surfer T08 | 0.768 | 0.98 | 0.461 | 2 | 0.512 | 1 | 1 | 11 mm Over Flats | ||||
| 2928094 | MOD10T08SK025 | T08M10-25/1.0 | TopOn M10 | Chip Surfer T08 | 0.559 | 0.98 | 0.461 | 2 | 0.709 | 1 | 1 | 11 mm Over Flats | ||||
| 2928087 | MOD12T08SK020 | T08M12-20/.75 | TopOn M12 | Chip Surfer T08 | 0.366 | 0.79 | 0.461 | 7 | 0.827 | 1 | 1 | 13 mm Over Flats | ||||
| 2927889 | MOD12T08SK025 | T08M12-25/1.0 | TopOn M12 | Chip Surfer T08 | 0.492 | 0.98 | 0.461 | 2 | 0.827 | 1 | 1 | 13 mm Over Flats | ||||
| 2927887 | MOD10T08SK020 | T08M10-20/.75 | TopOn M10 | Chip Surfer T08 | 0.445 | 0.79 | 0.461 | 7 | 0.709 | 1 | 1 | 13 mm Over Flats |
Notes:
- *When mounting, the mating surfaces & threaded areas must be thoroughly cleaned. Apply tightening torque to eliminate gap.

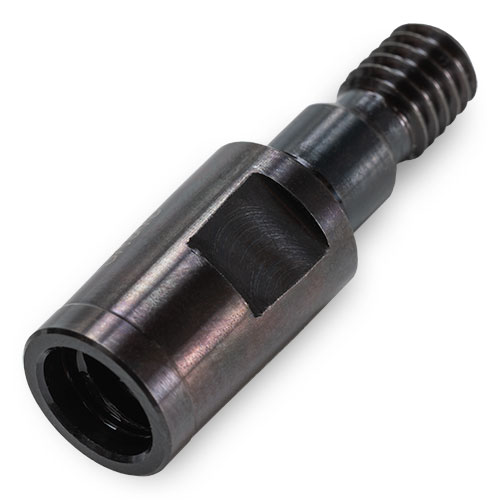

- *Images are a representation of the product series as a whole and therefore may not be an exact representation of a specific item
