Series: XEVT16_P - Insert for Non-Ferrous
Representative image shown ⓘ

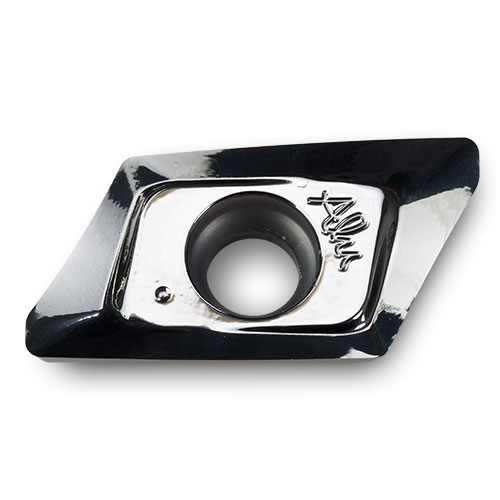

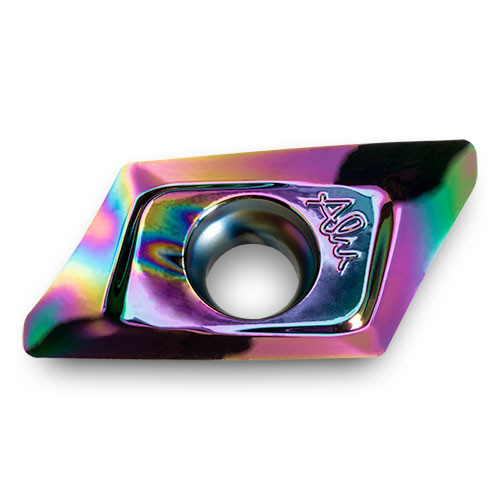

The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Up-sharp edge & polished rake face for non-ferrous materials
- Integrated wiper for surface finishes as good as 15 Ra
- 2 Indexes
Part Number |
Application |
RE Corner Radius |
BS Wiper Length |
LE Cutting Edge Eff. Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| XEVT160504FR-P | Grd/Pol for Al | 0.015 | 0.059 | 0.630 | 0.874 | 0.441 | 0.217 | 2 | Right | |
| XEVT160508FR-P | Grd/Pol for Al | 0.031 | 0.043 | 0.630 | 0.874 | 0.441 | 0.217 | 2 | Right | |
| XEVT160512FR-P | Grd/Pol for Al | 0.047 | 0.043 | 0.630 | 0.874 | 0.441 | 0.217 | 2 | Right | |
| XEVT160516FR-P | Grd/Pol for Al | 0.062 | 0.043 | 0.630 | 0.835 | 0.441 | 0.217 | 2 | Right | |
| XEVT160520FR-P | Grd/Pol for Al | 2.00 mm | 0.043 | 0.630 | 0.819 | 0.441 | 0.212 | 2 | Right | |
| XEVT160524FR-P | Grd/Pol for Al | 0.093 | 0.043 | 0.630 | 0.795 | 0.441 | 0.209 | 2 | Right | |
| XEVT160530FR-P | Grd/Pol for Al | 3.00 mm | 0.043 | 0.630 | 0.772 | 0.441 | 0.209 | 2 | Right | |
| XEVT160532FR-P | Grd/Pol for Al | 0.125 | 0.043 | 0.630 | 0.756 | 0.441 | 0.205 | 2 | Right | |
| XEVT160540FR-P | Grd/Pol for Al | 4.00 mm | 0.059 | 0.630 | 0.728 | 0.441 | 0.205 | 2 | Right | |
| XEVT160550FR-P | Grd/Pol for Al | 5.00 mm | 0.024 | 0.630 | 0.720 | 0.441 | 0.201 | 2 | Right |
