Series: 15T1D - T-Slot End Mill
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Ø.953"
- Weldon Shank
- .385" Cutting Width
- For .50" T-Bolt
- Stagger Tooth

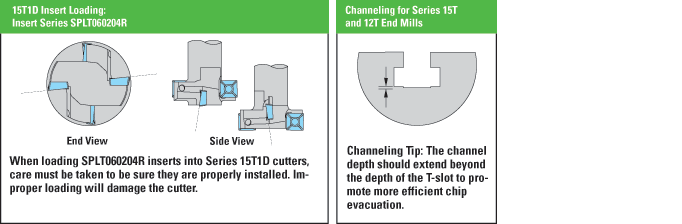

- 6 mm Insert with 4 indexes (2RH/2LH)
EDP |
Part Number |
DC Cutting Dia. |
CW Cutting Width |
CDX Cutting Depth Max. |
LUX Usable Length Max. |
LPR Projection Length |
OAL Overall Length |
ZEFP Eff. Teeth Periphery |
ZNP Peripheral Insert Count |
DN Neck Dia. |
DCON Shank Dia. |
CSP Coolant |
T-Bolt Size |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3007405 | 15T1D-0902580R01 | 0.953 | 0.385 | 0.20 | 1.10 | 1.34 | 4.75 | 2 | 4 | 0.51 | 1.0000 | Yes | 0.500 |
