Series: HCRNR/L - External Holder

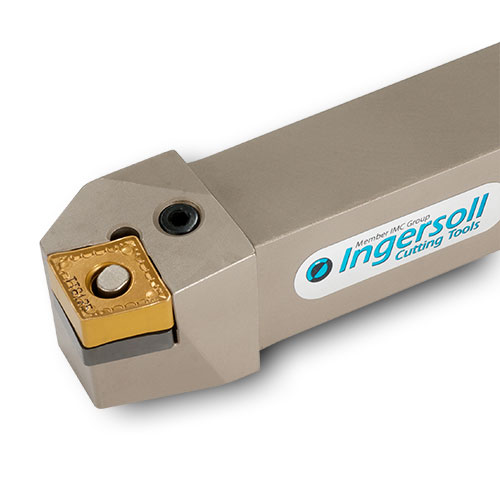

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Negative 80° CNMX-HB Inserts
- 15° Lead, OD Turning, Hook Lever Clamp
- 1.000-1.500" Shank

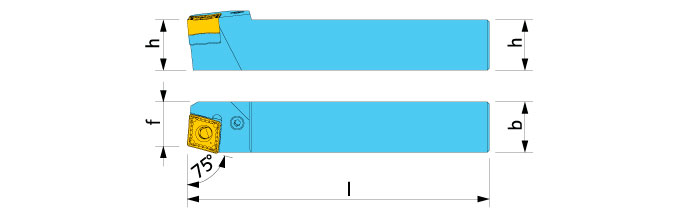

EDP |
Part Number |
H Shank Height |
HF Functional Height |
B Shank Width |
LF Functional Length |
WF Functional Width |
HAND Hand |
MIID Master Insert Identification |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3606456 | HCRNL16-55D | 1.000 | 1.000 | 1.000 | 6.0 | 1.047 | Left | CNMX160712HB | n/a | n/a | n/a | |
| 3606455 | HCRNR16-55D | 1.000 | 1.000 | 1.000 | 6.0 | 1.047 | Right | CNMX160712HB | ||||
| 3606457 | HCRNR20-55E | 1.250 | 1.250 | 1.250 | 7.0 | 1.291 | Right | CNMX160712HB | ||||
| 3607214 | HCRNR24-55E | 1.500 | 1.500 | 1.500 | 7.0 | 1.697 | Right | CNMX160712HB | n/a | n/a | n/a |
