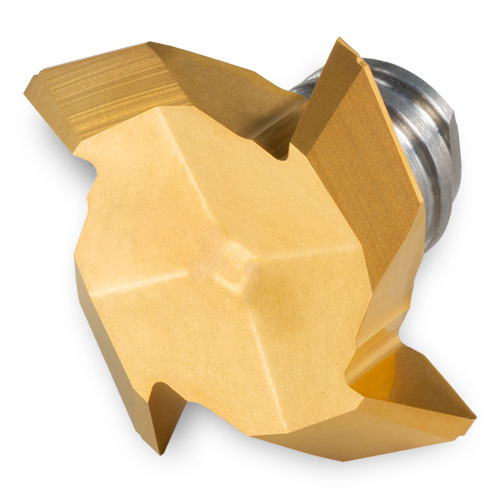

Series: 17Y_55 - Thread Mill Tip
Product Series Features:
- 55° Partial Profile
- Ø.750" Min.
- Chip Surfer Connection
- 4 Flute
EDP |
Part Number |

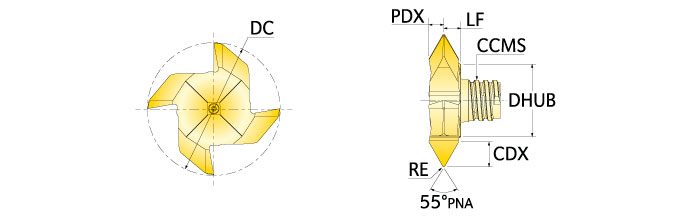

DC Cutting Dia. |
TPIN Threads Per Inch Min. |
TPIX Threads Per Inch Max. |
PNA Profile Included Angle |
RE Corner Radius |
PDX Profile Distance Ex |
CDX Cutting Depth Max. |
LF Functional Length |
DWN Workpiece Dia. Min. |
ZEFF Eff. Teeth |
CCMS Connection Code Machine Side |
DHUB Hub Dia. |
CSP Coolant |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5873026 | 17Y21714T8RP55 IN1530 | 0.854 | 11 | 14 | 55 | 0.008 | 0.090 | 3.60 mm | 2.40 mm | 0.953 | 4 | Chip Surfer T08 | 12.00 mm | No | NA | NA | NA |
Notes:
- When assembling, be sure tip is seated firmly on shank with no gap. No lubricant on adaption. Wrenches sold seperately.
