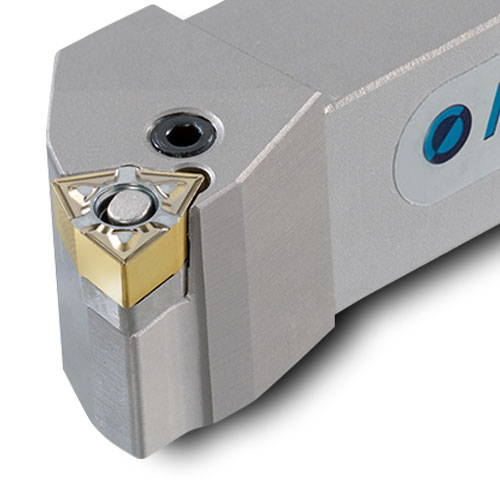

Series: HWLNR/L - External Holder
Product Series Features:
- Negative 80° WN_X-0604 Inserts
- -5° Lead, Hook Lever Clamp
- .625-1.000" Shank
EDP |
Part Number |
H Shank Height |
HF Functional Height |
B Shank Width |
LF Functional Length |
WF Functional Width |
LH Head Length |
HAND Hand |
MIID Master Insert Identification |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 6134402 | HWLNL10-33A | 0.625 | 0.625 | 0.625 | 4.0 | 0.750 | 1.02 | Left | WNMX060408MT | |
| 6134391 | HWLNR10-33A | 0.625 | 0.625 | 0.625 | 4.0 | 0.750 | 1.02 | Right | WNMX060408MT | |
| 6134392 | HWLNR12-33B | 0.750 | 0.750 | 0.750 | 4.5 | 1.000 | 1.02 | Right | WNMX060408MT | |
| 6134404 | HWLNL16-33D | 1.000 | 1.000 | 1.000 | 6.0 | 1.250 | 1.02 | Left | WNMX060408MT | |
| 6134393 | HWLNR16-33D | 1.000 | 1.000 | 1.000 | 6.0 | 1.250 | 1.02 | Right | WNMX060408MT |
