Series: NCE
Product Series Features:
- Milling Insert
- 8 Indexes

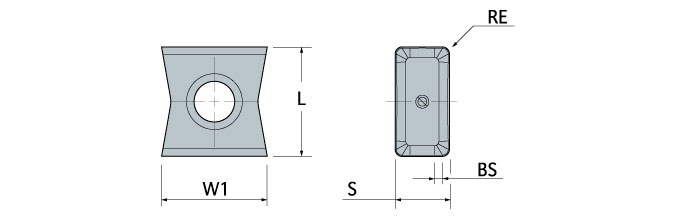

Part Number |
Application |
RE Corner Radius |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|
| NCE324-100 | Cast Iron | 0.031 | 0.500 | 0.475 | 0.250 | 8 | Neutral | |
| NCE324R107 | SiN for Iron | 0.031 | 0.500 | 0.475 | 0.250 | 4 | Right |
Notes:
- Insert screw tightening torque: 30-35in*lb.
- Insert screws M4 × 0.7 × 12. mm edp# 7000461
