Series: NNE

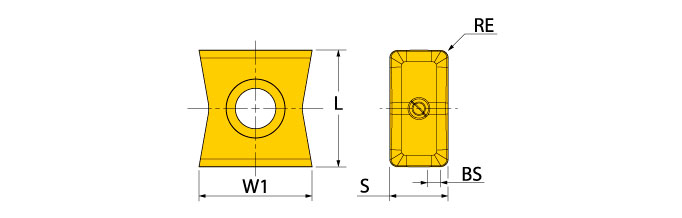

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- Milling Insert
Part Number |
Application |
RE Corner Radius |
BCH Corner Chamfer Length |
BS Wiper Length |
INSL Insert Length |
W1 Insert Width |
S Thickness |
NOI Number of Indexes |
IH Insert Hand |
|
|---|---|---|---|---|---|---|---|---|---|---|
| NND313-111 | Multi-Purpose | 0.047 | - | - | 0.394 | 0.370 | 0.205 | 8 | Neutral | |
| NNE324-100 | Multi-Purpose | 0.031 | - | - | 0.500 | 0.485 | 0.250 | 8 | Neutral | |
| NNE324-102 | Multi-Purpose | 0.062 | - | - | 0.500 | 0.485 | 0.250 | 8 | Neutral | |
| NNE324-104 | Multi-Purpose | - | 0.031 | - | 0.500 | 0.485 | 0.250 | 8 | Neutral | |
| NNE324-108 | Multi-Purpose | 0.031 | - | - | 0.500 | 0.485 | 0.250 | 8 | Neutral | |
| NNE324-110 | Multi-Purpose | - | 0.033 | - | 0.500 | 0.485 | 0.250 | 8 | Neutral | |
| NNE324-125 | Multi-Purpose | 0.125 | - | - | 0.500 | 0.485 | 0.250 | 8 | Neutral | |
| NNE324-144 | Multi-Purpose | - | - | - | 0.500 | 0.485 | 0.250 | 8 | Neutral | |
| NNE324-174 | Utility Insert - Heavy Duty | 0.125 | - | - | 0.500 | 0.485 | 0.250 | 8 | Neutral | |
| NNE324L109 | Multi-Purpose | 0.031 | - | - | 0.500 | 0.472 | 0.250 | 4 | Left | |
| NNE324R107 | Multi-Purpose | 0.031 | - | - | 0.500 | 0.485 | 0.250 | 4 | Right | |
| NNE324R109 | Multi-Purpose | 0.031 | - | - | 0.500 | 0.473 | 0.250 | 4 | Right | |
| NNE425-030 | Multi-Purpose | 0.005 | - | 0.080 | 0.625 | 0.312 | 0.555 | 8 | Right | |
| NXE324-100 | Heavy-Duty | 0.031 | - | - | 0.500 | 0.485 | 0.250 | 8 | Neutral | |
| YNE324-100 | Crowned Wiper | 0.031 | - | - | 0.505 | 0.485 | 0.250 | 4 | Neutral |
Notes:
- Insert screw tightening torque: 30-35in*lb.
- Insert screws M4 × 0.7 × 12. mm edp# 7000461
