Series: CD - 5xD Combi Drill (Tip & Indexable)
Product Series Features:
- Ø26.0-45.0 mm
- Universal Shank (Metric)
- Two Effective
- Holds +.003/-.000 on Hole Diameter
- Coolant Through

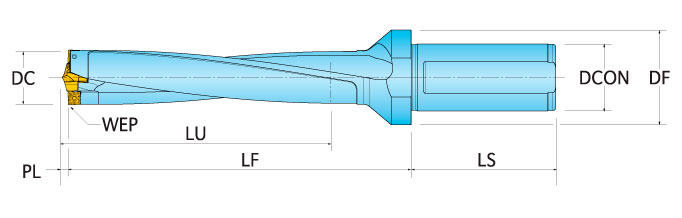

EDP |
Part Number |
DC Cutting Dia. |
PL Point Length |
LU Usable Length |
LF Functional Length |
LS Shank Length |
OAL Overall Length |
DCON Shank Dia. |
DF Flange Dia. |
ZEFF Eff. Teeth |
DXF File |
STEP Light File |
STEP Detailed File |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6134240 | CD2600130JGR00 | 26.00 mm | 3.89 mm | 130.0 mm | 167.70 mm | 60.0 mm | 227.7 mm | 32.0 mm | 40.0 mm | 2 | NA | NA | NA | |
| 6140133 | CD2800140JGR00 | 28.00 mm | 4.23 mm | 144.0 mm | 179.90 mm | 60.0 mm | 239.9 mm | 32.0 mm | 40.0 mm | 2 | NA | NA | NA | |
| 6134241 | CD2900145JGR00 | 29.00 mm | 3.93 mm | 149.0 mm | 145.00 mm | 60.0 mm | 244.2 mm | 32.0 mm | 40.0 mm | 2 | NA | NA | NA | |
| 6140134 | CD3000150JGR00 | 30.00 mm | 4.08 mm | 154.0 mm | 190.30 mm | 60.0 mm | 250.3 mm | 32.0 mm | 40.0 mm | 2 | NA | NA | NA | |
| 6140135 | CD3100155JGR00 | 31.00 mm | 4.25 mm | 159.0 mm | 196.40 mm | 60.0 mm | 256.4 mm | 32.0 mm | 40.0 mm | 2 | NA | NA | NA | |
| 6134242 | CD3300165JHR00 | 33.00 mm | 3.89 mm | 169.0 mm | 210.20 mm | 70.0 mm | 278.2 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | ||
| 6140137 | CD3400170JHR00 | 34.00 mm | 4.08 mm | 174.0 mm | 216.30 mm | 70.0 mm | 284.3 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6140138 | CD3500175JHR00 | 35.00 mm | 4.25 mm | 179.0 mm | 222.40 mm | 70.0 mm | 290.4 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6140139 | CD3600180JHR00 | 36.00 mm | 4.39 mm | 184.0 mm | 228.50 mm | 70.0 mm | 296.5 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6134243 | CD3700185JHR00 | 37.00 mm | 4.08 mm | 189.0 mm | 232.80 mm | 70.0 mm | 300.8 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6140140 | CD3800190JHR00 | 38.00 mm | 4.28 mm | 194.0 mm | 238.90 mm | 70.0 mm | 306.9 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6140141 | CD3900195JHR00 | 39.00 mm | 4.39 mm | 199.0 mm | 245.00 mm | 70.0 mm | 313.0 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6140142 | CD4000200JHR00 | 40.00 mm | 4.54 mm | 205.0 mm | 251.00 mm | 70.0 mm | 319.0 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6140143 | CD4100205JHR00 | 41.00 mm | 4.68 mm | 210.0 mm | 257.10 mm | 70.0 mm | 325.1 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6140144 | CD4200210JHR00 | 42.00 mm | 4.84 mm | 215.0 mm | 263.10 mm | 70.0 mm | 331.1 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6134244 | CD4300215JHR00 | 43.00 mm | 4.96 mm | 220.0 mm | 269.20 mm | 70.0 mm | 337.2 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6140145 | CD4400220JHR00 | 44.00 mm | 5.12 mm | 225.0 mm | 275.30 mm | 70.0 mm | 343.3 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA | |
| 6140146 | CD4500225JHR00 | 45.00 mm | 5.28 mm | 230.0 mm | 281.20 mm | 70.0 mm | 349.2 mm | 40.0 mm | 50.0 mm | 2 | NA | NA | NA |
Notes:
- Do not mount a smaller drill point than the one listed with the tool. Standard Gold Twist tips do not fit in the Gold Twin body. Gold Twin use a modified, std Gold Twist tip, TPA-C & Locking Key. Metric Shanks are available as non-stock standards.
