Series: ADJST*ER
Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- INCH Weldon Shank
- Center Alignment ER Collet Chuck DIN 6499
- Quick Change Tool Holder
- For use with Qwik Ream & Unidex Tooling
- Radial adjustment .008"
- Angular adjustment 1°
- Central Coolant Hole
EDP |
Part Number |
SS Connection Code Machine Side |
CSI Connection Code Workpiece Side |

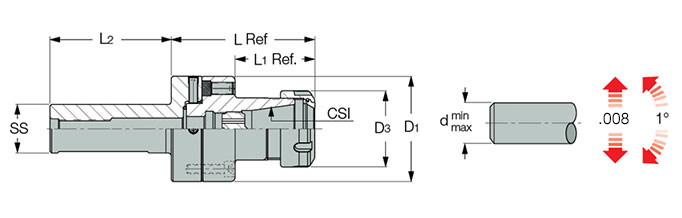

d max Shank Dia. Max. |
D1 Body Dia. |
D3 Retention Nut Dia. |
L Gauge Length |
L1 Body Length 1 |
L2 Body Length 2 |
J Pre-set Screw |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3241054 | ADJST1-1/4D2.756ER32 | 1.25" | ER32 | 0.789 | 2.756 | 1.969 | 3.720 | 2.067 | 3.150 | M22 × 1.5 |
