Series: CAT*ER16 / ER20

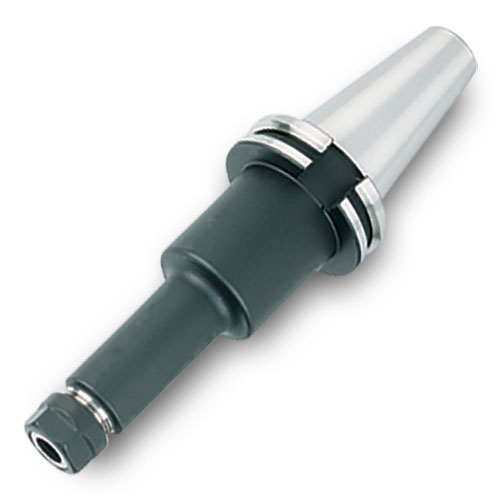

Representative image shown ⓘ
The image above is intended to represent the product series for illustrative purposes only. The actual product may vary.
Product Series Features:
- CAT V-Flange ER16 & ER20 Collet Chuck
- with AD or B Tapered Shank
EDP |
Part Number |

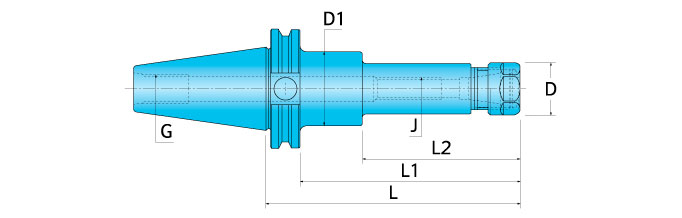

SS Connection Code Machine Side |
D3 Retention Nut Dia. |
L Gauge Length |
J Pre-set Screw |
|
|---|---|---|---|---|---|---|
| 2901043 | CAT40ER16X5.120P | CAT40 | 1.110 | 5.120 | 7-16-20 LH |
Notes:
- "B" Designation indicates coolant through the flange
